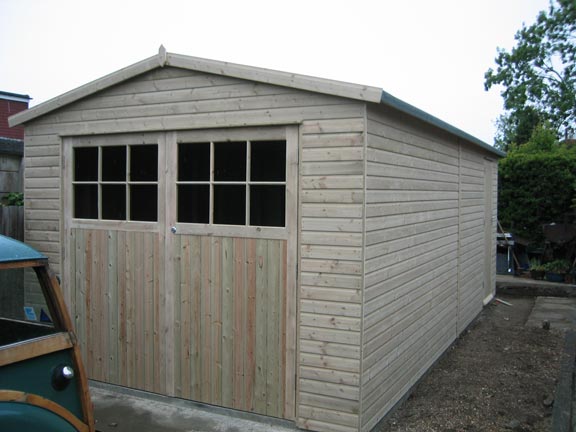

Single Garage
All our buildings are manufactured to order with pressure treated tongue and groove shiplap or loglap, with eased-edge framing and constructed using high quality, triple-life nails for extended life.
This means the building size, door and window position and door hand can be manufactured to suit your requirements with additional options and upgrades to choose from.
All roofs are covered in green polyester mineral felt with the option of torch-on felt upgrade. Also available are further options for apex roofs, these are; Corrugated Onduline, heavy duty felt shingles, cedar wood shingles or Tapco roof slate. For pent roofs a further option is a EPDM rubber roof upgrade.
PRICES INCLUDE VAT, LOCAL DELIVERY AND LOCAL ERECTION
Description
Apex height:
Minimum 96” (2440mm). Eaves 84” (2135mm)
Door:
Minimum height 78” (1980mm). Variable width joinery built framed,ledged and braced double doors.
Front side hung doors
Width of double doors on a:
10’ wide garage 7’ door
12’ wide garage 8’ door
14’ wide garage 9’ door
16’ wide garage 9’6” door
18’ wide garage 2no 7’ doors
20’ wide garage 2no 8’ doors
Cladding:
Tongue and groove shiplap ¾”x4” (19mm x 100mm) Tongue and groove loglap 7/8”x4” (22mm x1 00mm)
Framing:
Eased edge 1½”x3” (38mm x 75mm). 3”x3” (75mm x 75mm) to surround doors. Plyboard cladding inside at door end
Window:
Optional
Roof:
½” (11mm) OSB board
Roofing felt:
20kg green polyester mineral felt
Lining:
Black breathable membrane
Options:
Personal door, A frames, up and over doors, windows
