Low Maintenance Cedral Bespoke Buildings
We offer Cedral cladding to our buildings with the option of uPVC double glazed doors and windows in white, black, anthracite and rosewood woodgrain finish. We offer electrics and reverse cycle air conditioning (heat and cool).
With Tapco roof slate, these buildings are very low maintenance with fire resistant pre-coloured cladding.
Buildings are made to your requirements and we will be happy to advise on the design and any planning/Building control restrictions.
We can lay a concrete base with steel enforcing especially to suit the Cedral lap buildings, ideal to take the extra weight. Alternatively we can lay an upgraded platform base.
The Cedral lap buildings consist of:
- CLS 100x50mm (nominal) pressure treated C16 graded timber framing
- Sheathing plyboard to CLS
- Novia breathable membrane
- 38x50mm (nominal) pressure treated timber batten for Cedral lap weatherboard
- Cedral lap weatherboard
- All Cedral trims and vents
- EPDM rubber and trims – 20 year manufacturers warranty on all rubber
- 1 no pair uPVC white French doors and windows-additional finishes available
- 28mm double glazed units
Buildings are made to your requirements, we will be happy to advise on the design and any planning/Building control restrictions.
Fibre cement Cedral Lap weatherboard external cladding is the ideal lowmaintenance, rot free alternative to traditional timber weatherboarding. With the visual appeal of natural timber, simplicity of installation and resistance to rot, Cedral Lap weatherboard is an attractive, low maintenance alternative to PVCu.
Cedral Lap weatherboard can be supplied in a range of factory applied solid colours and a woodgrain finish – providing an aesthetic option to suit many project requirements.
(right) 5.0m x 3.0m C05 Grey cladding and Chartwell green uPVC doors and windows plus a triple glazed roof light.

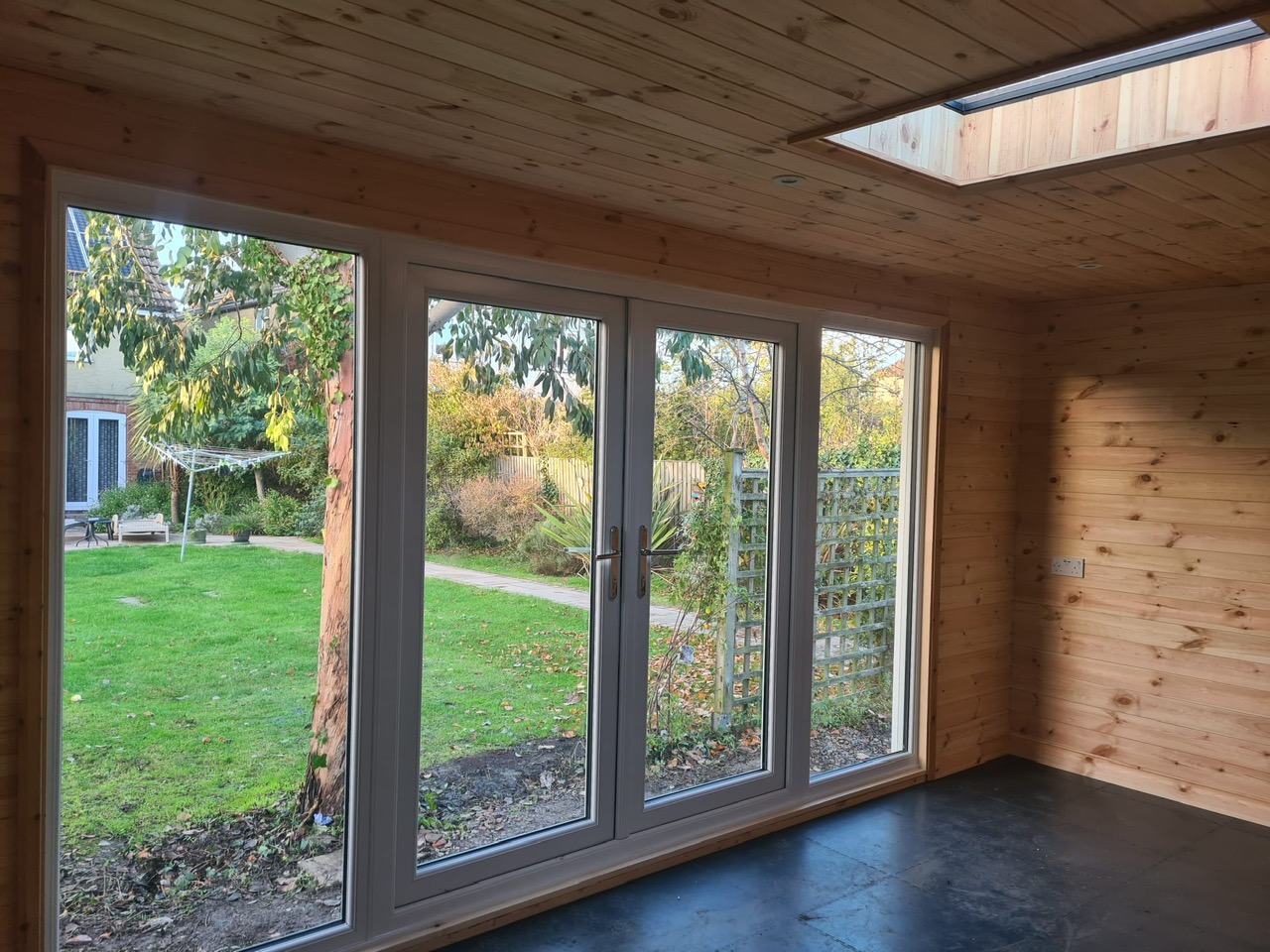

Whitewood Tongue & Groove internal and insulation, reverse cycle air conditioning (heat and cool) rubber roofing with white trims.
(left) C50 Black Cedral clad mono pitch roof building with Double glazed Anthracite doors and windows. Rubber roof and fully insulated, plaster board finish inside ready for others to paint
PIR Insulation and plasterboard Breather membrane , framing and Cedral Lap Example of building in progress
Extra height Apex building with pewter grey Tapco roof slate, Framed, ledged and braced timber doors (ready to stain), Anthracite uPVC feature window, Concrete base and soakaway.
5.0m x 3.0m C10 Blue Grey Cedral building with anthracite uPVC double glazed French doors, side lights, rubber roof with 2x sky lights, shed section with extra door ,laminate flooring, Reverse cycle air conditioning and all Electrical works (down lights/sockets ect)
4.0m x 3.5m Cedral lap mono pitch building completed and ready for others to decorate. Including reverse cycle air-condition unit that heats and cools for different seasons , Laminated floor, Anthracite outer/white inner French doors with side lights and a high level opening window. Rubber roof and trims, walksure decking step.
C51 Silver grey Cedral lap clad building with anthracite outer white inner double glazed doors and windows. Fully insulated with 70mm PIR insulation and covered with plaster board. All electrical works and reverse cycle air condition unit as part of the project.
We removed the existing concrete garage and constructed this 5.2m x 3.0m mono pitch roof C05 Grey Cedral lap building with Anthracite uPVC double glazed French doors with side lights and a matching panel shed door. Rubber roofing with black trims. This fully insulated building is finished internally with 12.5mm plaster board fill and tapped ready for others to decorate.
(Left) 4.0m x 3.0m Mono pitch roof building in C05 Cedral lap cladding with Matching trims and anthracite (outer/white inner) double glazed French doors and window unit.EPDM rubber roof with anthracite trims. The building is fitted to a Quinneys upgraded platform base that consists of concrete posts supporting a pressure treated floor. The building is insulated with 70mm pir foam board and finished with 12.5mm plasterboard.

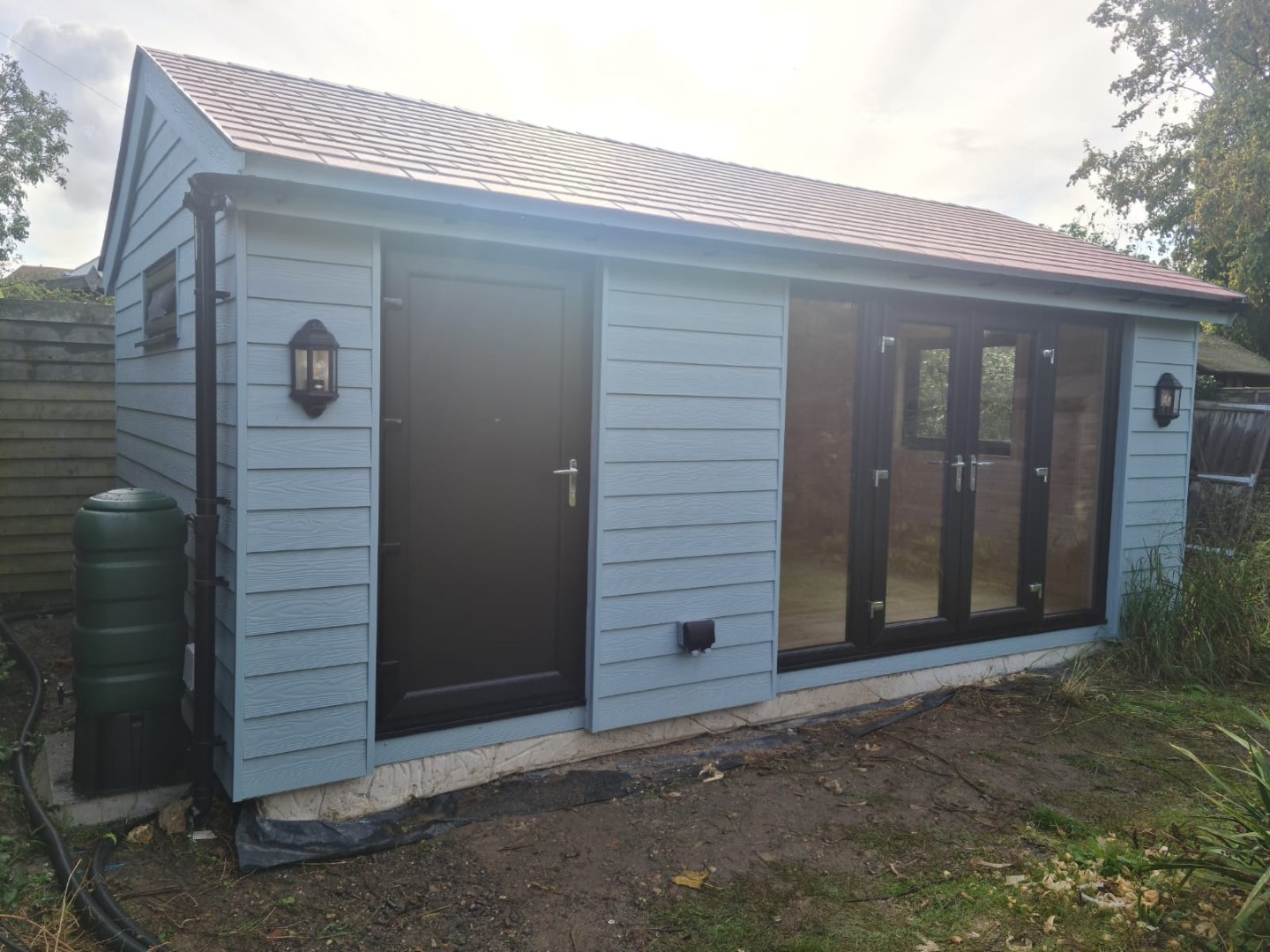

(Right) 1.1634m x 3.665m standard apex roof building, C10 Blue Grey Cedral lap, Red Rock Tapco roof slate, Anthracite uPVC doors and windows. Reverse cycle heating/cooling Air con unit, Full Electric package. Constructed on a steel reinforced insulated concrete base.
4.0m x 3.0m apex roof, C51 silver Cedral lap clad building with matching trims and pewter grey Tapco roof slate. Upvc anthracite Guttering/ doors and windows with dummy bars.
5.0m x 3.0m Cedral building, C05 Grey cladding and Chartwell green upvc doors and windows plus a triple glazed roof light.
Whitewood internal cladd and insulation, reverse cycle air conditioning (heat and cool) rubber roofing with white trims.

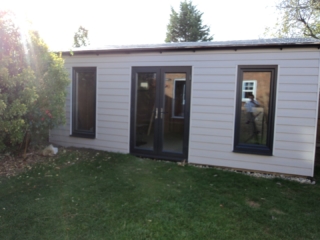

This is our Mono pitch (front elevation) C05 grey Cedral lap clad building with anthracite uPVC double glazed windows. Insulated and plaster boarded walls and ceiling. Reverse cycle air condition unit.

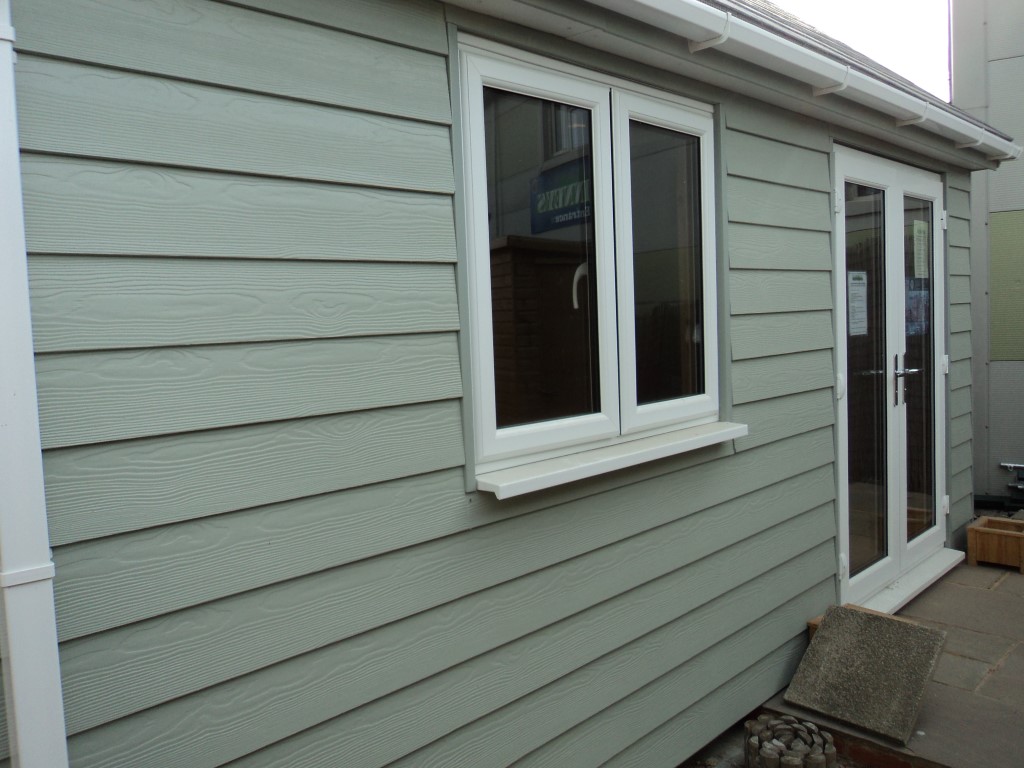

This building is available to view on our show site.
We fitted this building for Vincent’s nursery, Herne Bay. Co6 grey/green Cedral lap cladding, C01 white soffit and facias, upvc white double glazed doors and windows, Firestone epdm rubber roofing with black upvc trims, reverse cycle cool/heat air-condition unit.
Mono-pitch roof
4m x 2.5m mono-pitch roof,C51 silver grey Cedral lap clad building with uPVC white doors and windows and EPDM rubber roof – insulated and plaster-boarded internally, ready for others to decorate.
Bespoke building with C05 Grey Cedral lap cladding and matching trims. UPVC anthracite tilt and turn windows/ french doors. Tapco roof slate 804 pewter grey.
Herne bay Pier kiosk/huts – White C01 Cedral lap with Framed , Ledged and Braced Joinery doors and flap with felt roof
Hastings Pier Huts - Black C50 Cedral Lap with matching trims, Joinery Framed, Ledged and Braced doors and flap
ADVANTAGES
- Class 0 fire rating
- Excellent aesthetics
- Resistant to rot and insects
- Low maintenance
- Easy to install
- Comprehensive range of matching aluminium trims
- Complementary soffit and fascia board available in the 9 best selling Cedral lap colours
C06 Grey/Green Cedral lap cladding and matching trims. uPVC white double glazed windows and single door. Pewter grey tapco roof slate.
Cedral cladding office and storgage with uPVC double glazed french doors and windows, additional uPVC storage door EPDM rubber roof and timber gate
C10 blue/grey Cedral lap cladding with C15 dark grey corner trims , uPVC white doors and windows
Cedral lap building with Tapco Pewter grey slate roof, pressure treated doors to shed section and upvc white doors and windows to hobby room.
C18 Slate grey Cedral lap weather board and trims with Black tapco roof slate, Rosewood woodgrain uPVC windows and French doors. Centre pivot roof lights.
Pewter grey Tapco roof slate
Cedral lap building with uPVC doors and windows
